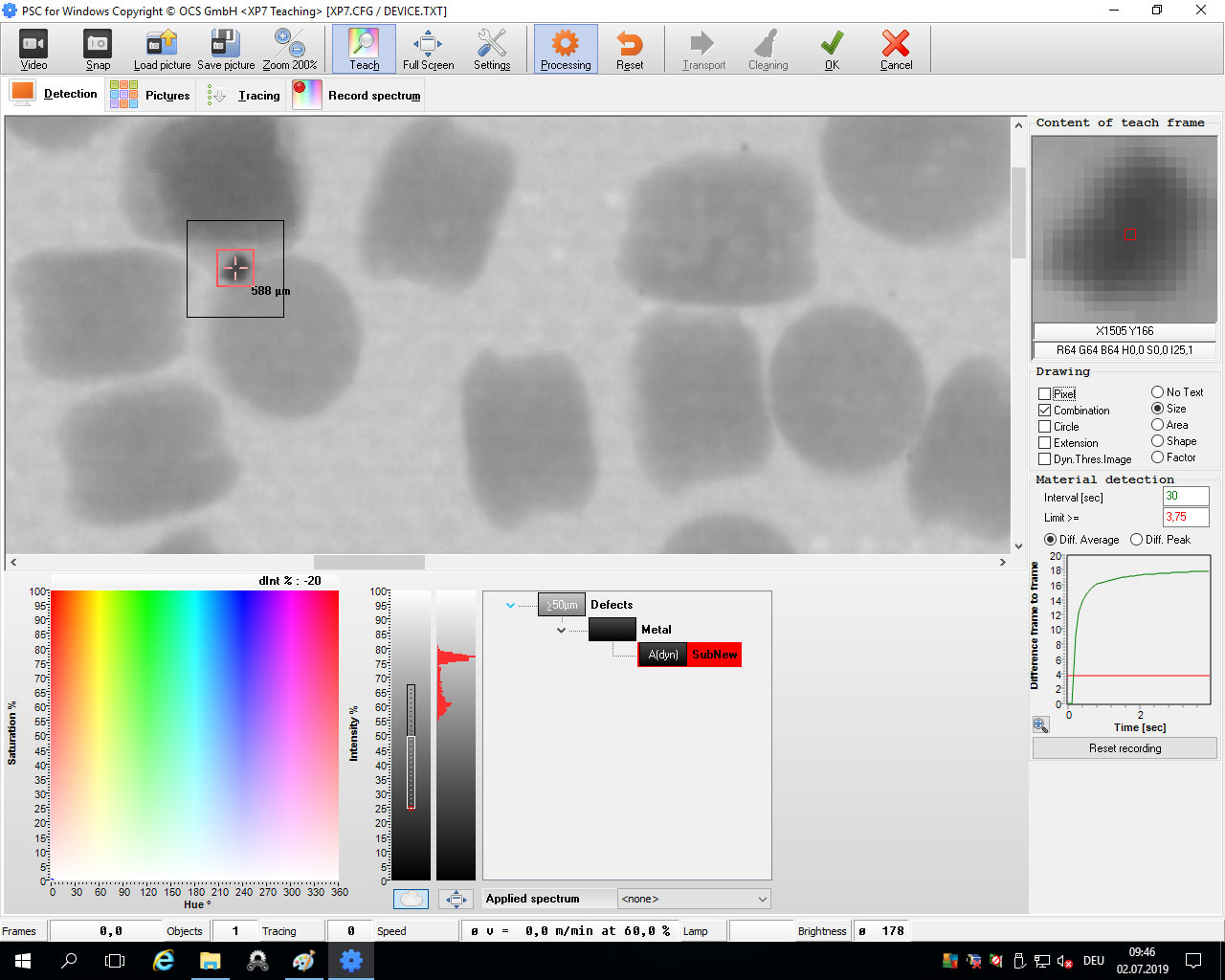

The new OCS XP7 X-Ray Pellet Scanner detects metal defects in highly transparent, opaque, and colored pellets, which improves the polymer and product quality. The innovative X-ray technology in the measuring system of the XP7 analyses images of the pellet stream in real time. Due to the different absorption of the X-rays in the metal and in the polymer, the embedded metal particles can be detected from a size of 50 µm. Contaminated pellets are sorted out by a multi-track air nozzle system.
| Resolution | 50 μm |
| High-voltage generator | Specification max.: 30 kV, 300 W Operated at: 25 kV, 300 W |
| Communication protocol | MODBUS (RTU, TCP/IP), PROFIBUS, PROFINET, OPC (Server/Client), CSV file, customer-specific |
| Radiation protection measures | Fully enclosed radiation protection housing; In operation measured dose rate lower than background level; Redundant guard controls with active guard locking; Redundant optical warning lights; Key swit |
