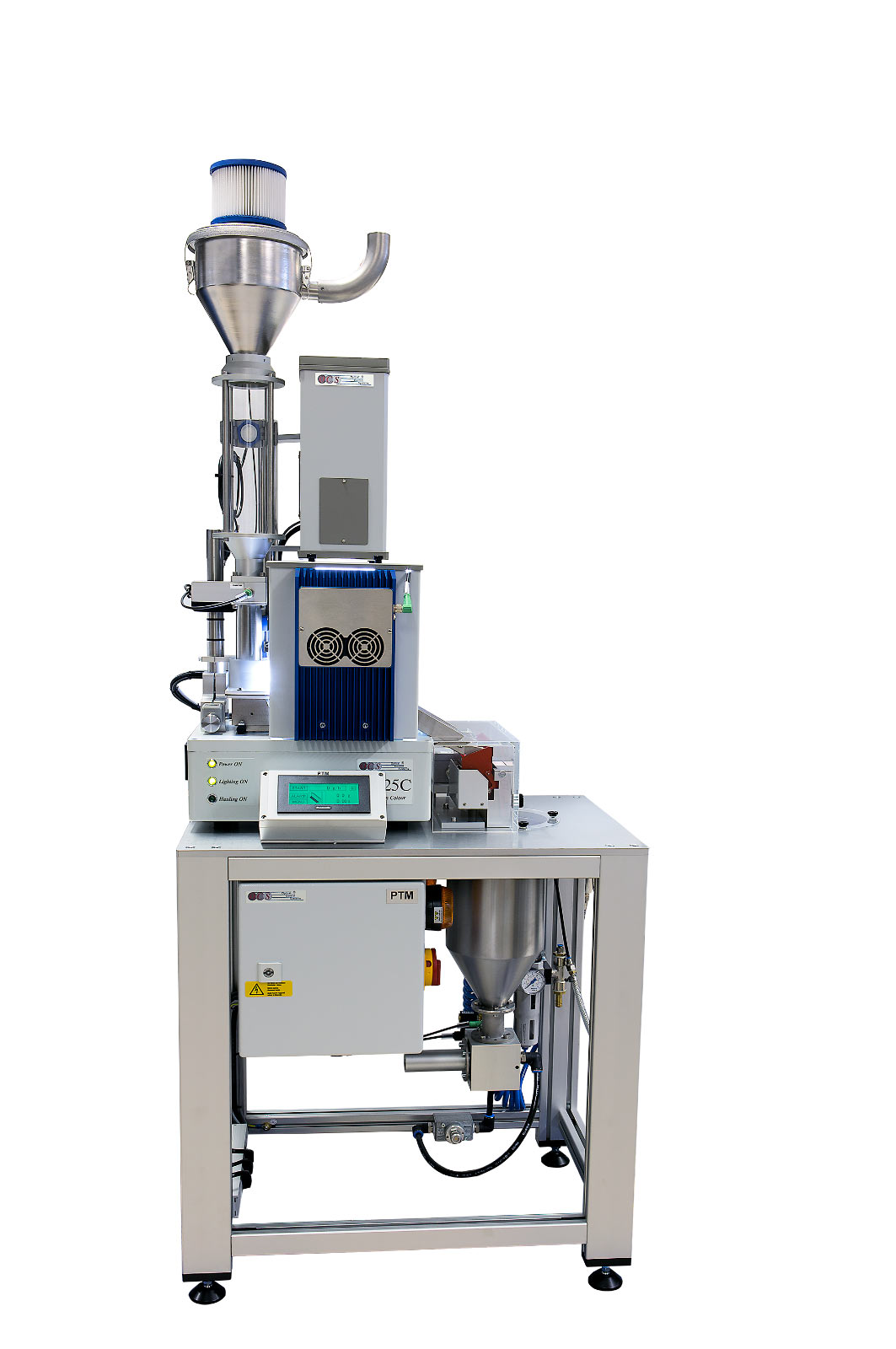

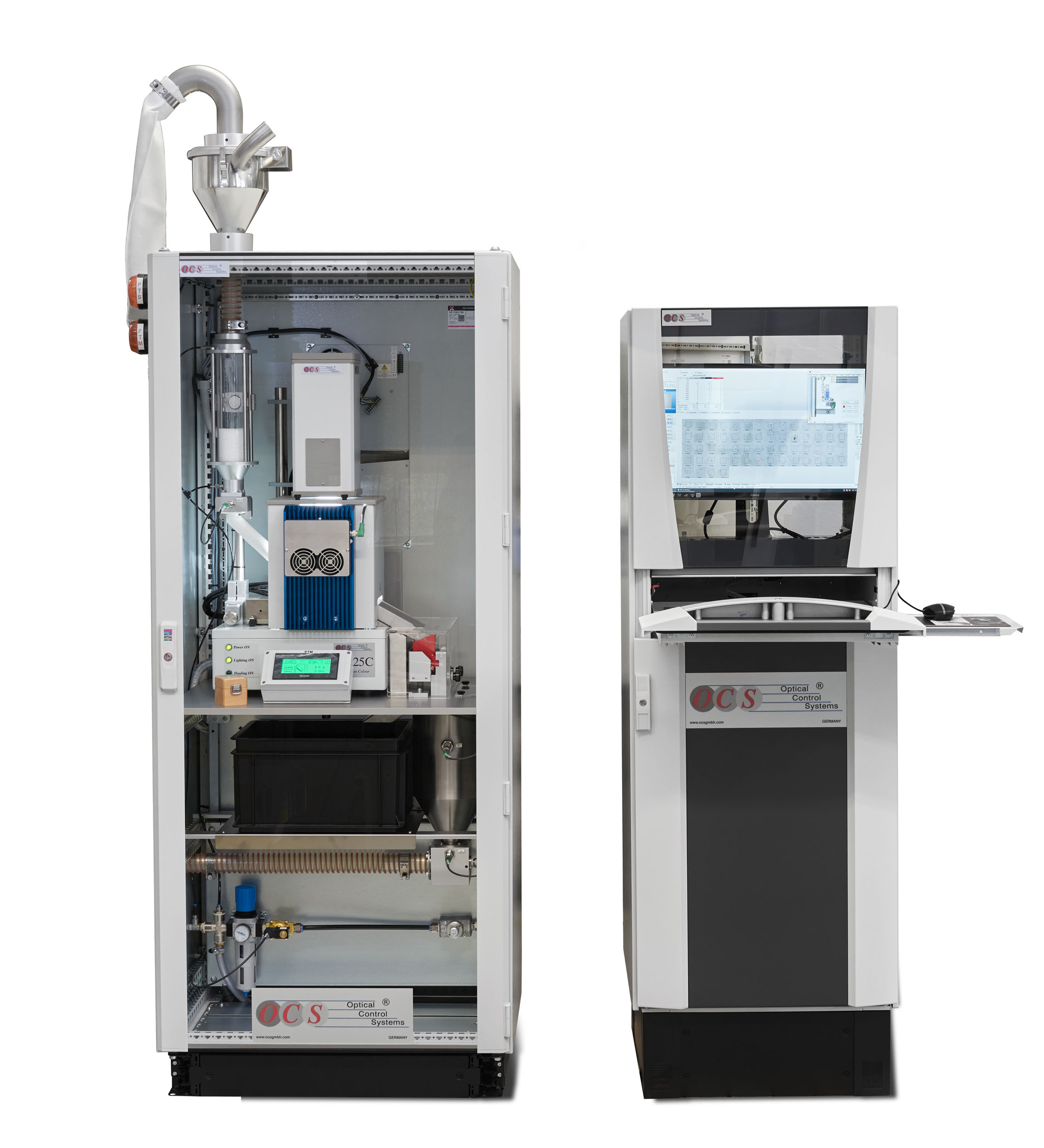

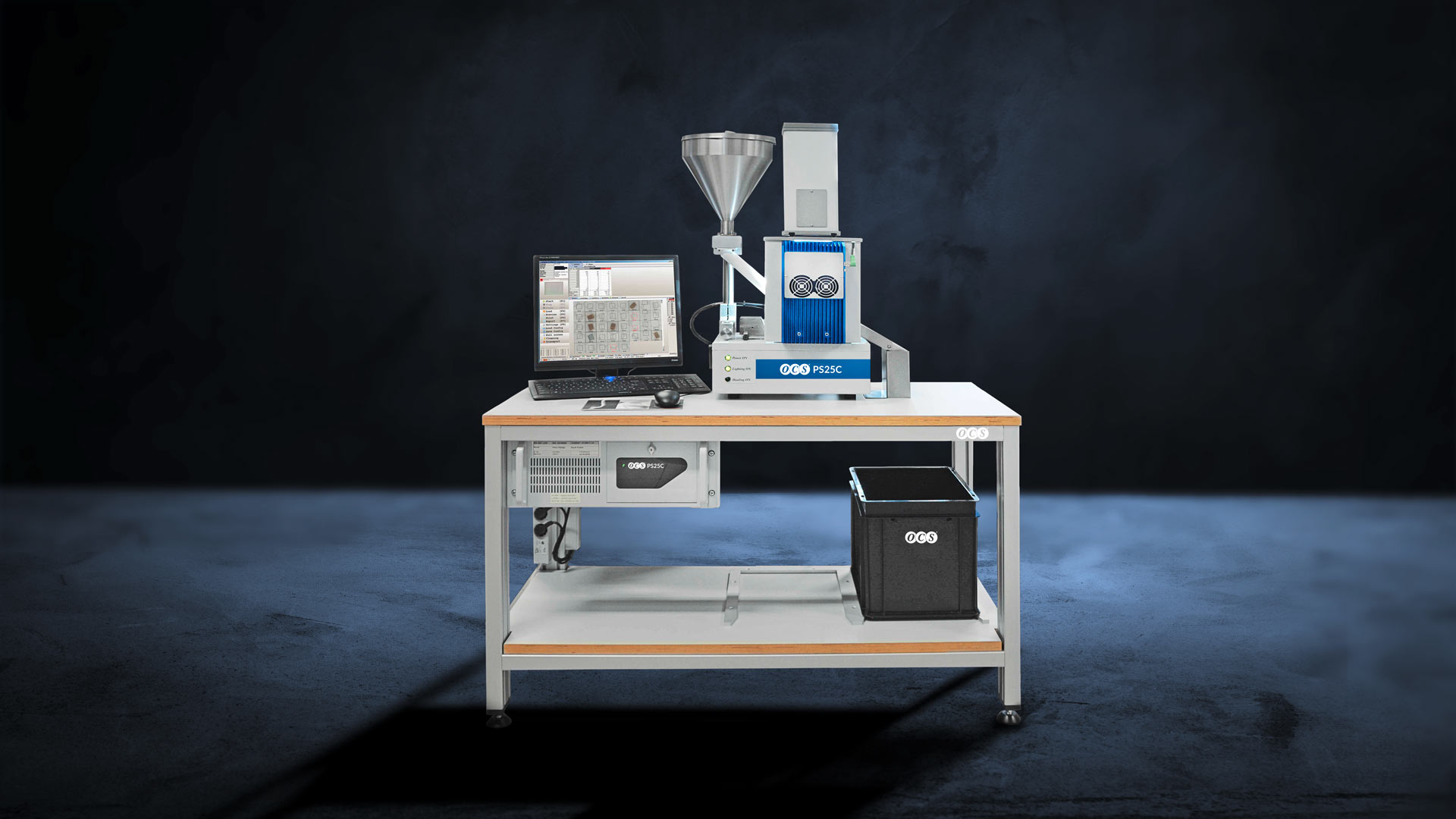

Pellet Scanner (PS25C)

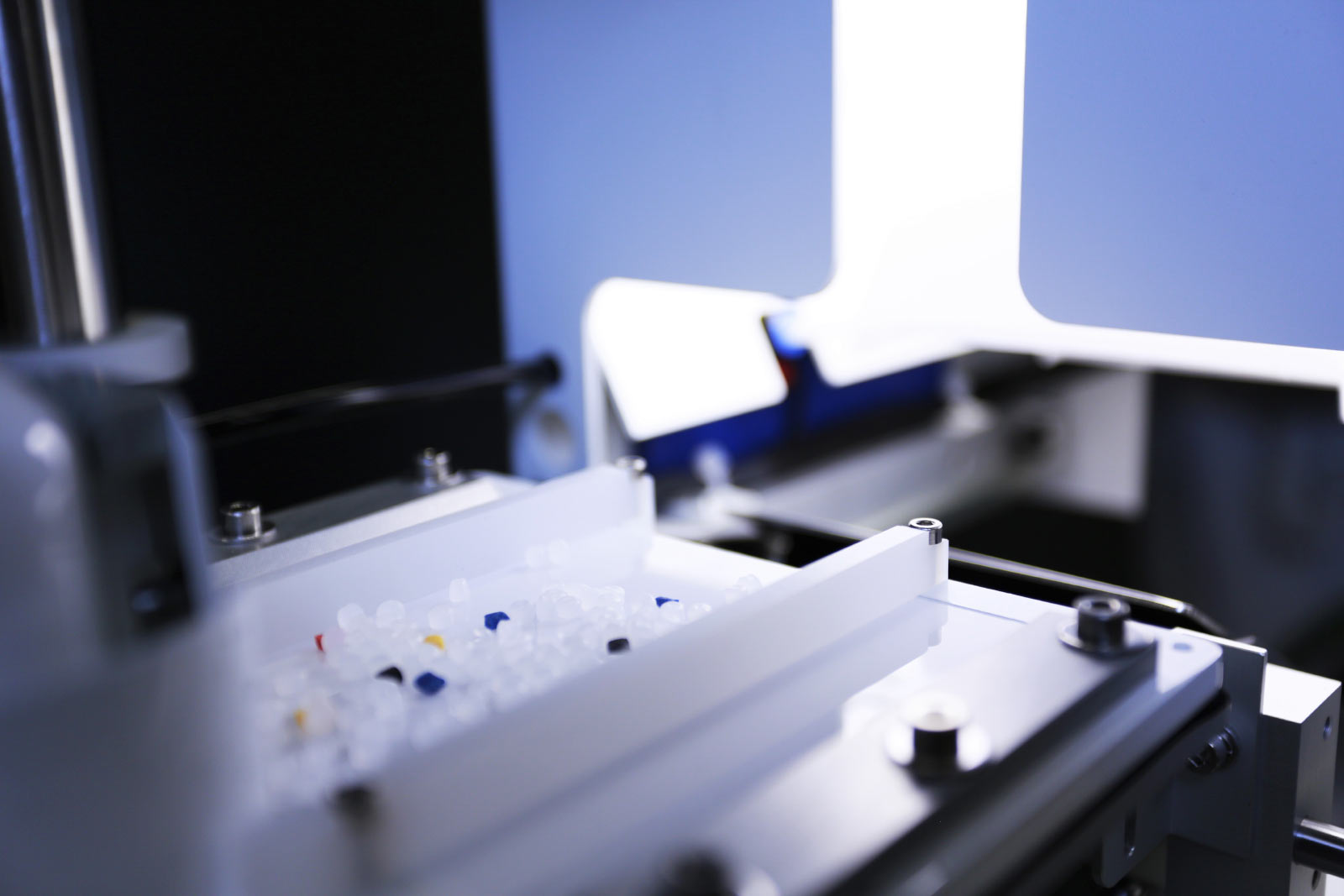

With the OCS Pellet Scanner (PS25C), highly transparent and opaque pellets can be analysed on a vibration plate using a colour matrix camera. The system detects impurities that show a colour deviation from the product. An additional feature of the PS25C is a multi-track flap system (optional), which sorts out the contaminated pellets. Further advantages are the data transfer of the real-time results to the production and process control as well as the subsequent evaluation of the sorted-out pellets by further analysis systems.
Testable Raw Materials
- Highly transparent pellets (e.g., PET, PMMA, polycarbonate)
- Opaque pellets (e.g., polypropylene, polyethylene, ABS)
- Recycled pellets (e.g., rPET, recycled HDPE, recycled PP)
- Colored pellets (e.g., pellets in various shades)
- Specialty pellets (e.g., biodegradable or high-performance polymers)
Features
- High-performance 3CMOS colour matrix camera
- Smallest detectable contamination size: 10 µm
- Throughput rate of up to 25 kg/h depending on pellet properties
- Visualisation of the real-time results
- Multi-track flap system for sorting out contaminated pellets
Compatible with
- OCS Colour Measurement (CM3)
- OCS Pellet Size and Shape Distribution Measurement (PSSD)
- OCS Pellet Transport System (PTS)
