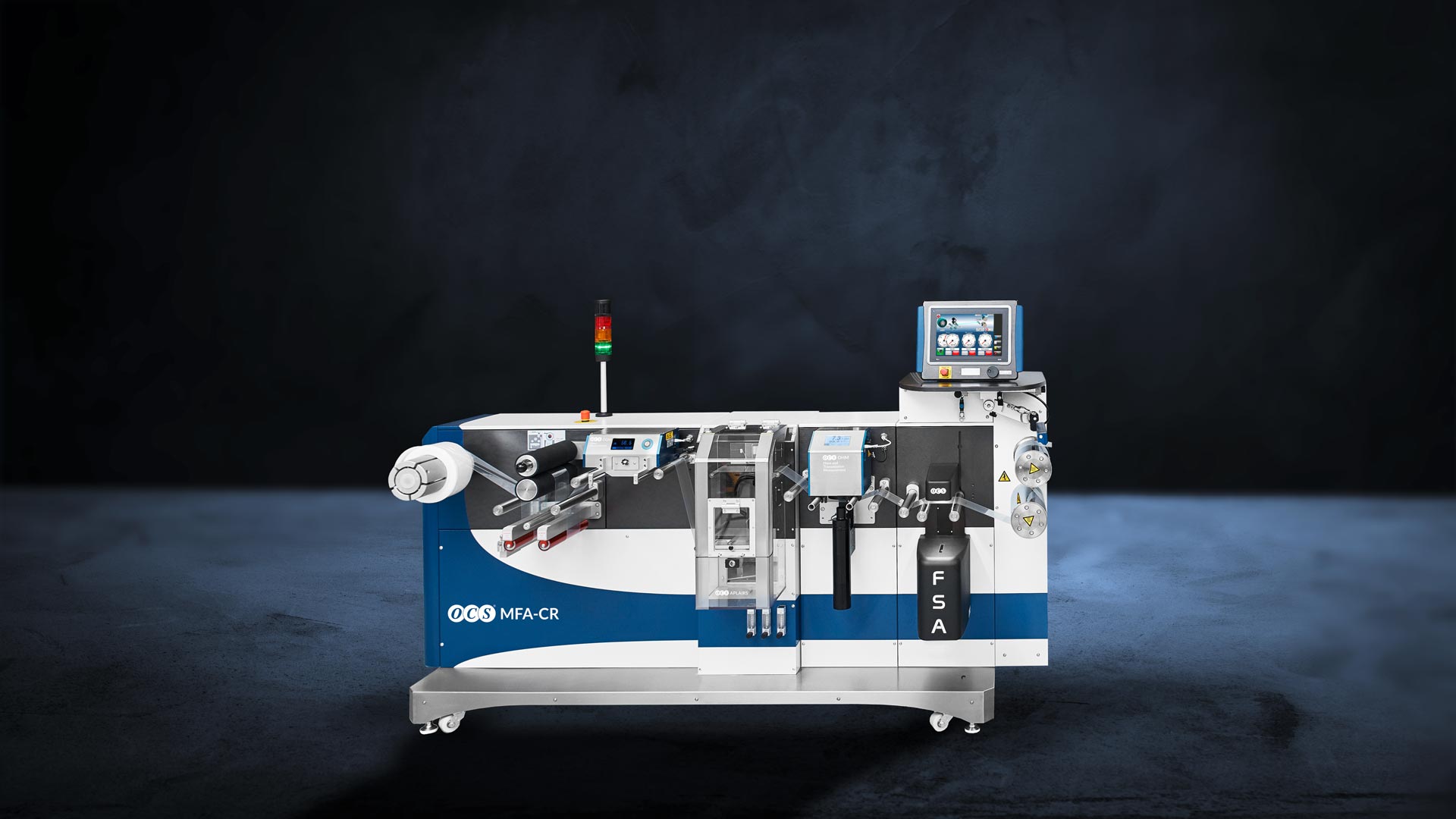

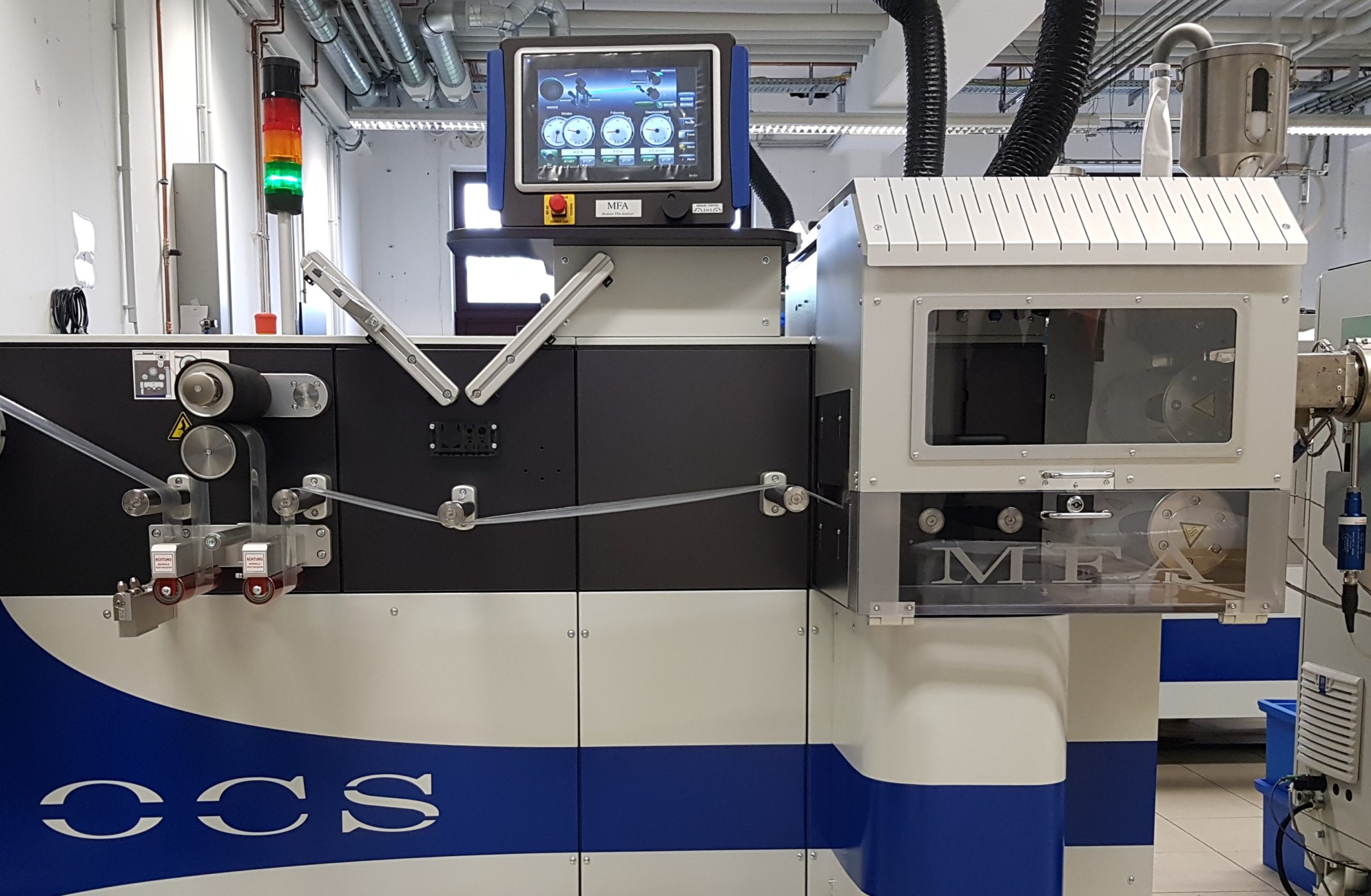

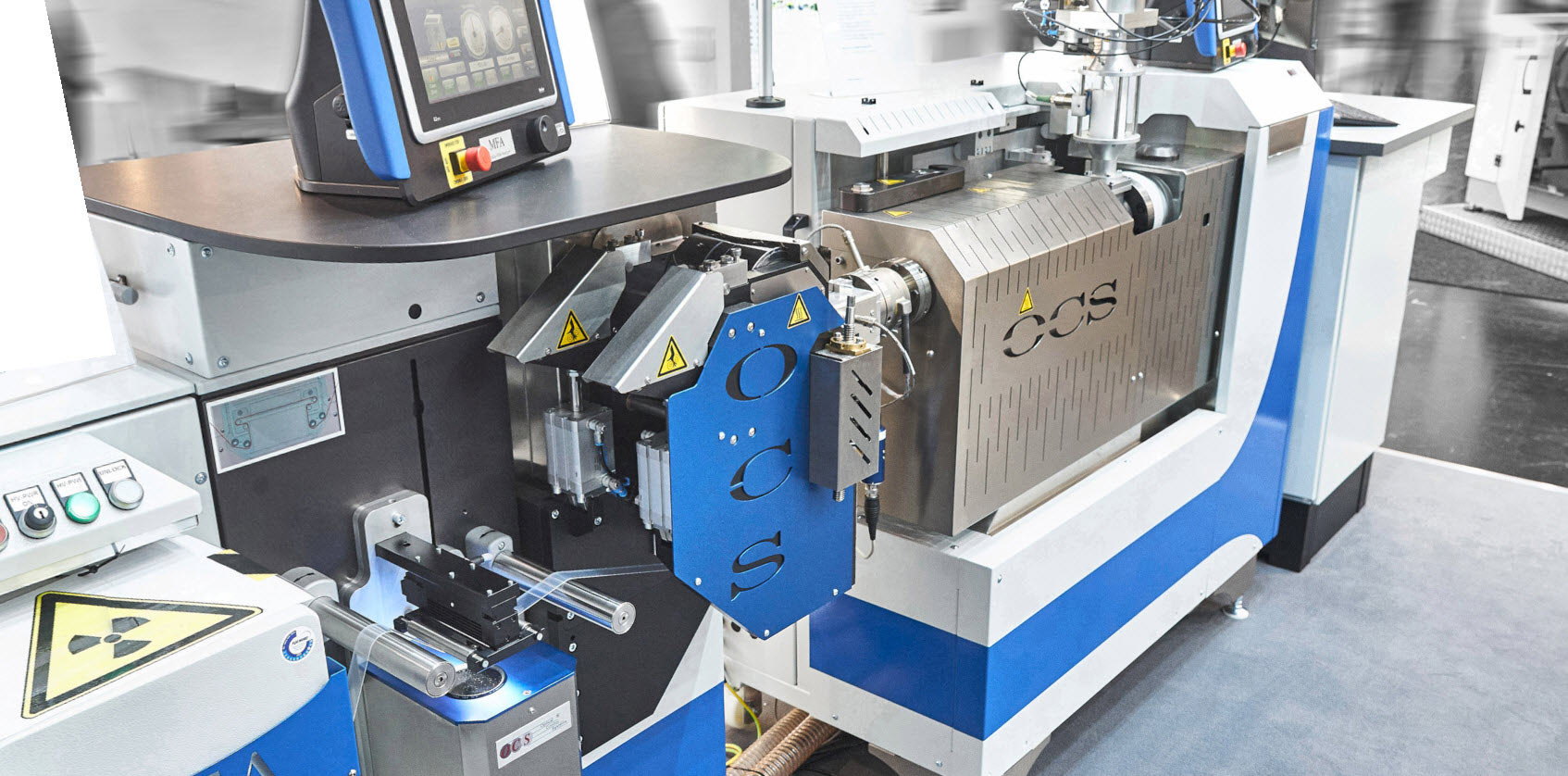

The OCS Modular Film Analyser (MFA) is used for the continuous cooling, stripping and winding of extruded polymer film. In combination with a variety of different measuring instruments, a wide range of applications for the analysis of different sample materials is covered.
In addition to the Film Surface Analyser (FSA100V2/FSA200V2) for optical quality control of the polymer film, online spectroscopy, the measurement of haze and transmission as well as gloss and thickness can be integrated. This allows the combination of a tailor-made and yet economical solution.
| Haul-off speed | Up to 15 m/min (optional 30 m/min) |
| Chill rolls | Working width: 200, 300, 400 mm, material: stainless steel, chromium-plated or with non-stick coating |

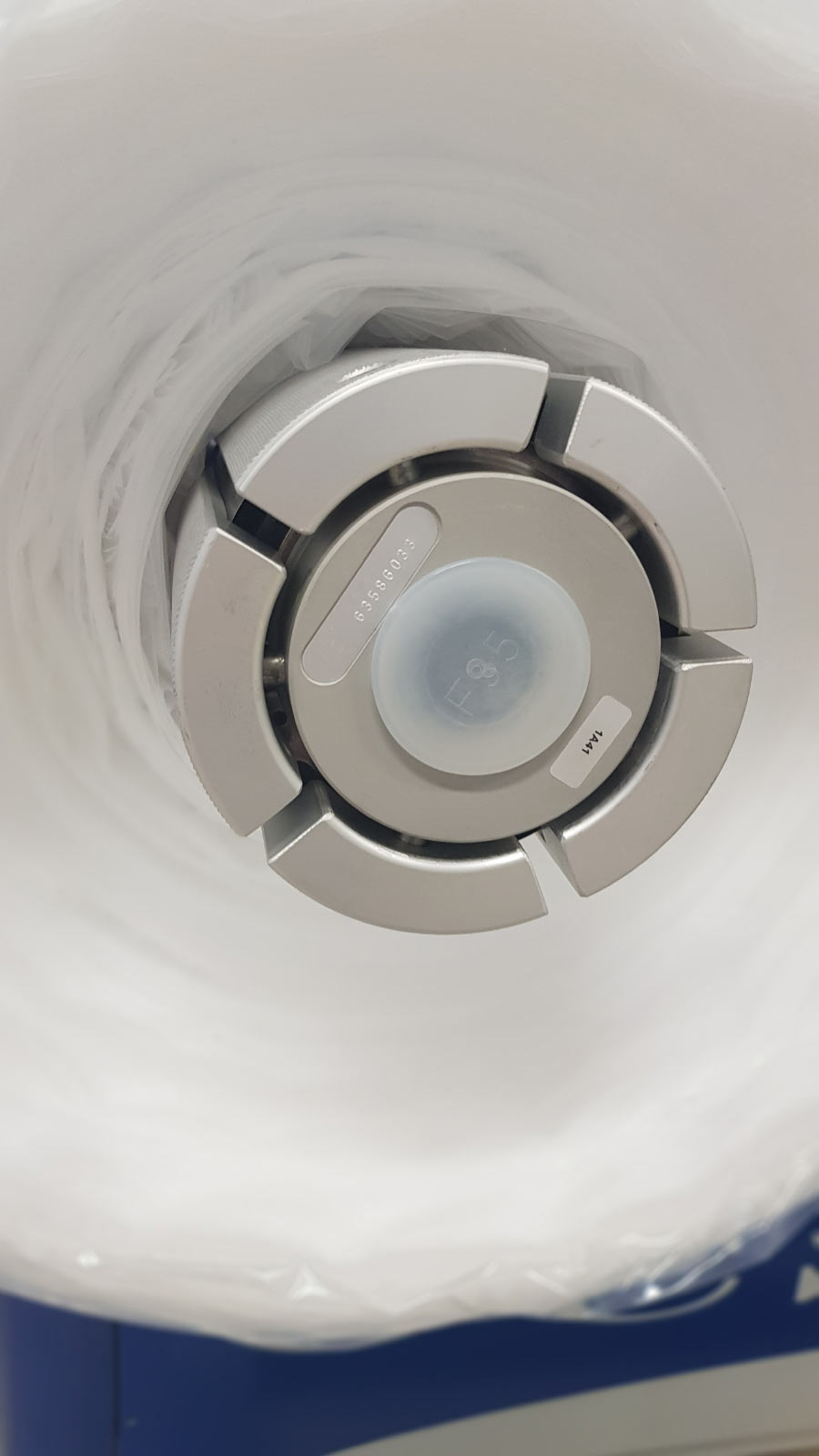

| Winder | Sleeveless pneumatic mandrel, winding diameter of up to 600 mm |
| Communication protocol | MODBUS (RTU, TCP/IP), PROFIBUS, PROFINET, OPC (Server/Client), CSV file, customer-specific |
